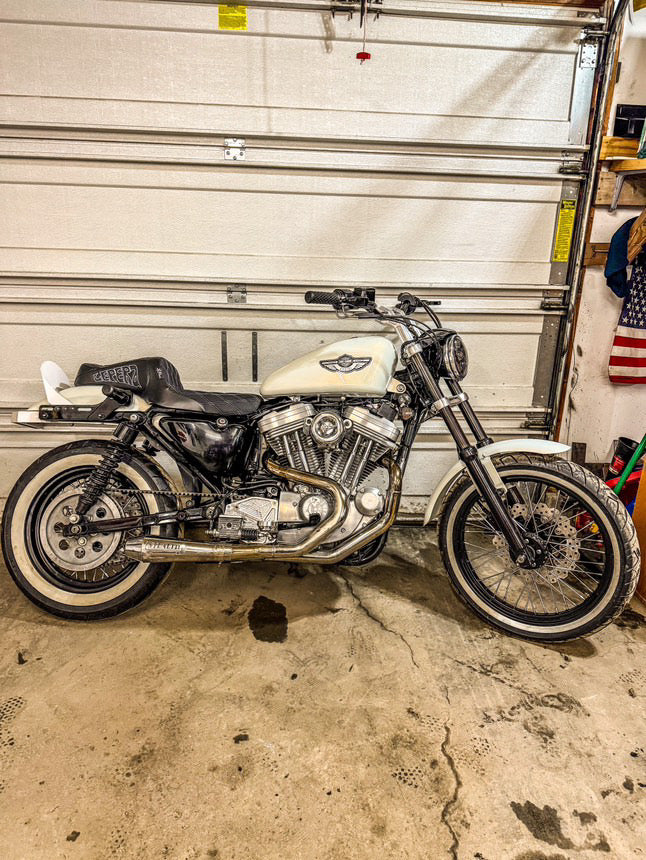

04 up Full Sub-Cage

     Ready to strengthen up those weak a** rear frame rails? Want a step you can actually fit both of your feet on without drilling holes in your fender? Well, we have you covered! Our rear “Subcage” system will do all of that and then some!

****All parts come raw unless specifically stated otherwise****

12 bar features:

• 12 o’clock bar made of 1/4 inch thick steel.
• Full width Stunt House 1 inch thick titanium.
• Slotted front mounting holes to make installation easier.
• Utilizes stock fender bolt holes.
• No welding required for installation.
• Tig welded.

**** Fender trimming is required depending on model.****

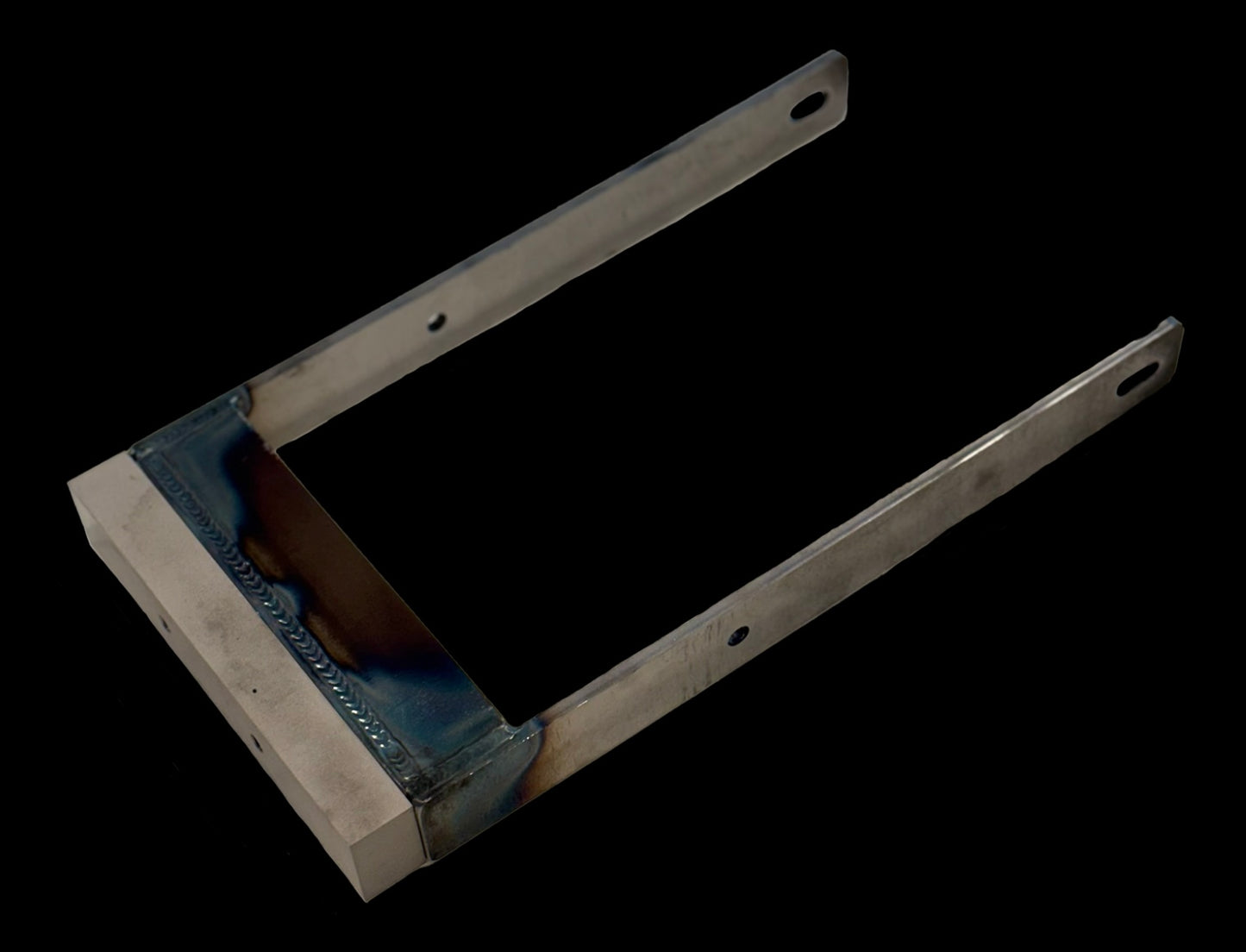

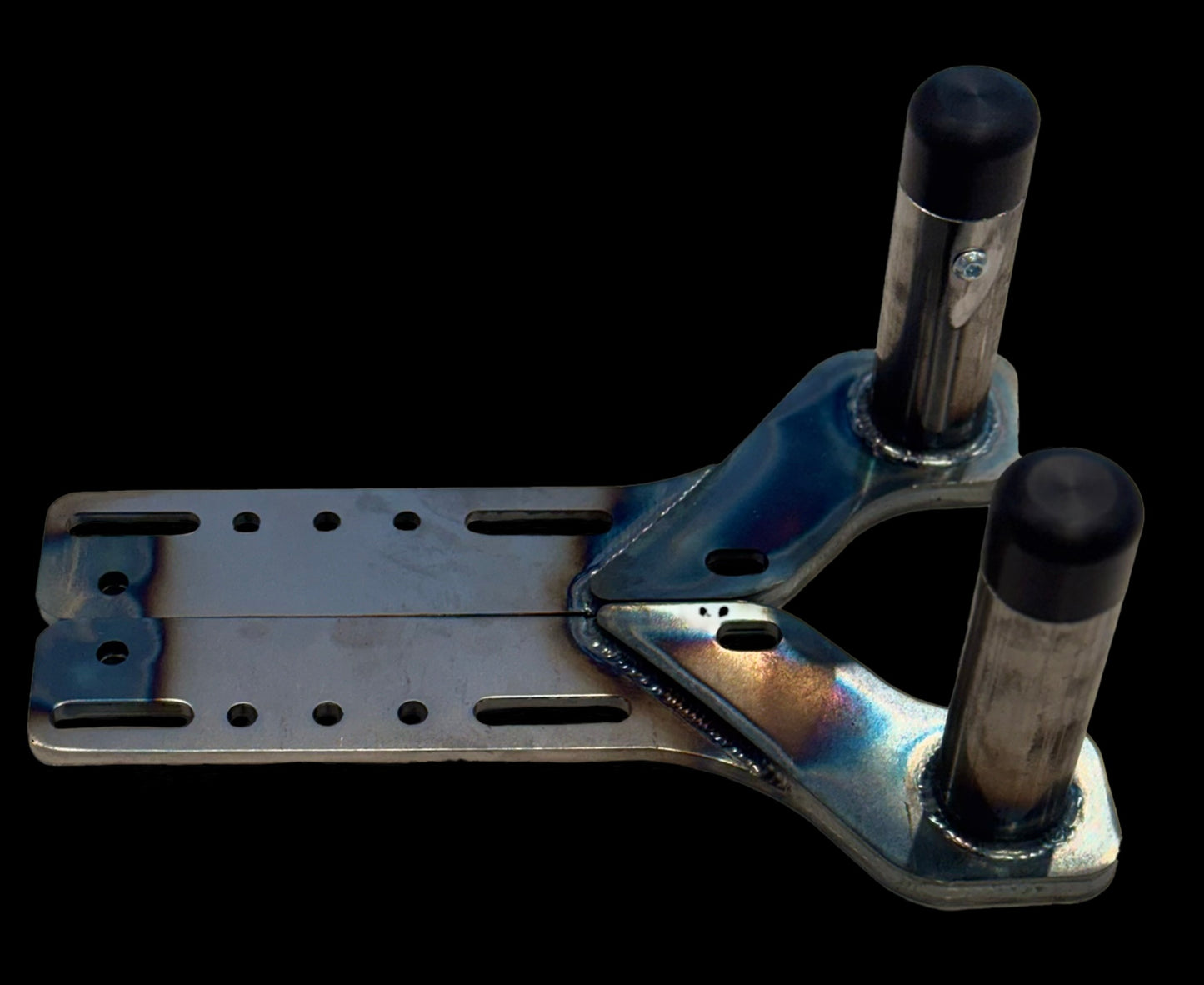

Subcage features:

• Outer Subcage rails are made of 1/4 inch thick steel with the front section being DOUBLE PLATED coming in at 1/2 inch thick.
• Pegs are welded THROUGH the front 1/2 inch thick steel. No more broken shock bolts!
• Mounting holes utilize stock fender bolt holes.
• Mounting spacers welded to the back of the Subcage rails takes out the guess work.
• Custom slots in the rear of the rails allow for pull straps to be hooked on for secure towing while 5/16 inch holes make tying down luggage easy for those longer rides.
• Replaceable Delrin peg sliders included.
• Tig welded.

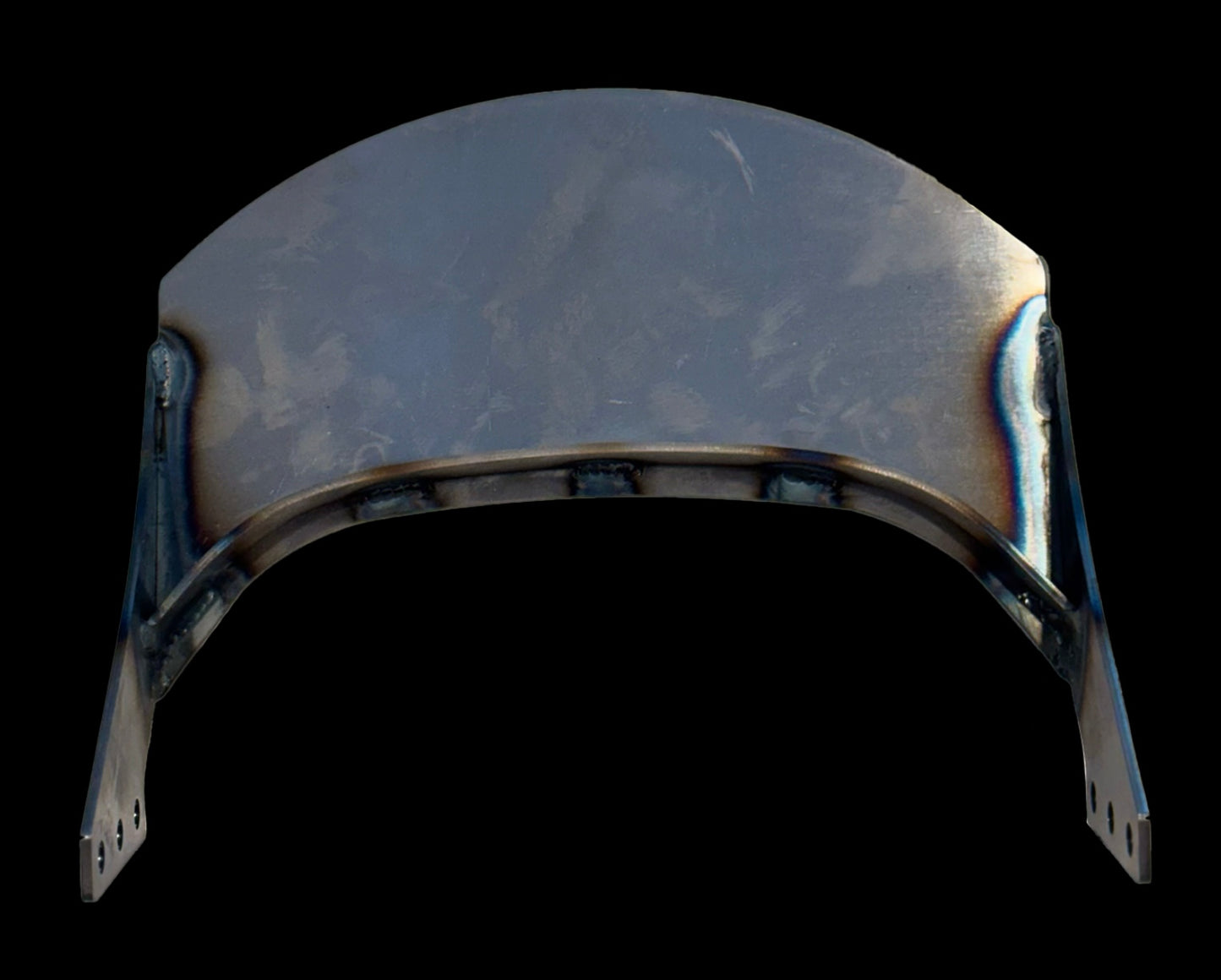

Step plate features:

• Made of 1/8 inch plate.
• 10 inches wide.
• 4.5 inches tall at the peak.
• “Toe kick” design stops you from beating up your fender with your shoes and allows for quicker foot placement.
• Braces between both Subcage rails to strengthen the rear frame of the bike.
• 6 mounting holes to connect to our Subcage rails.
• Tig welded.
